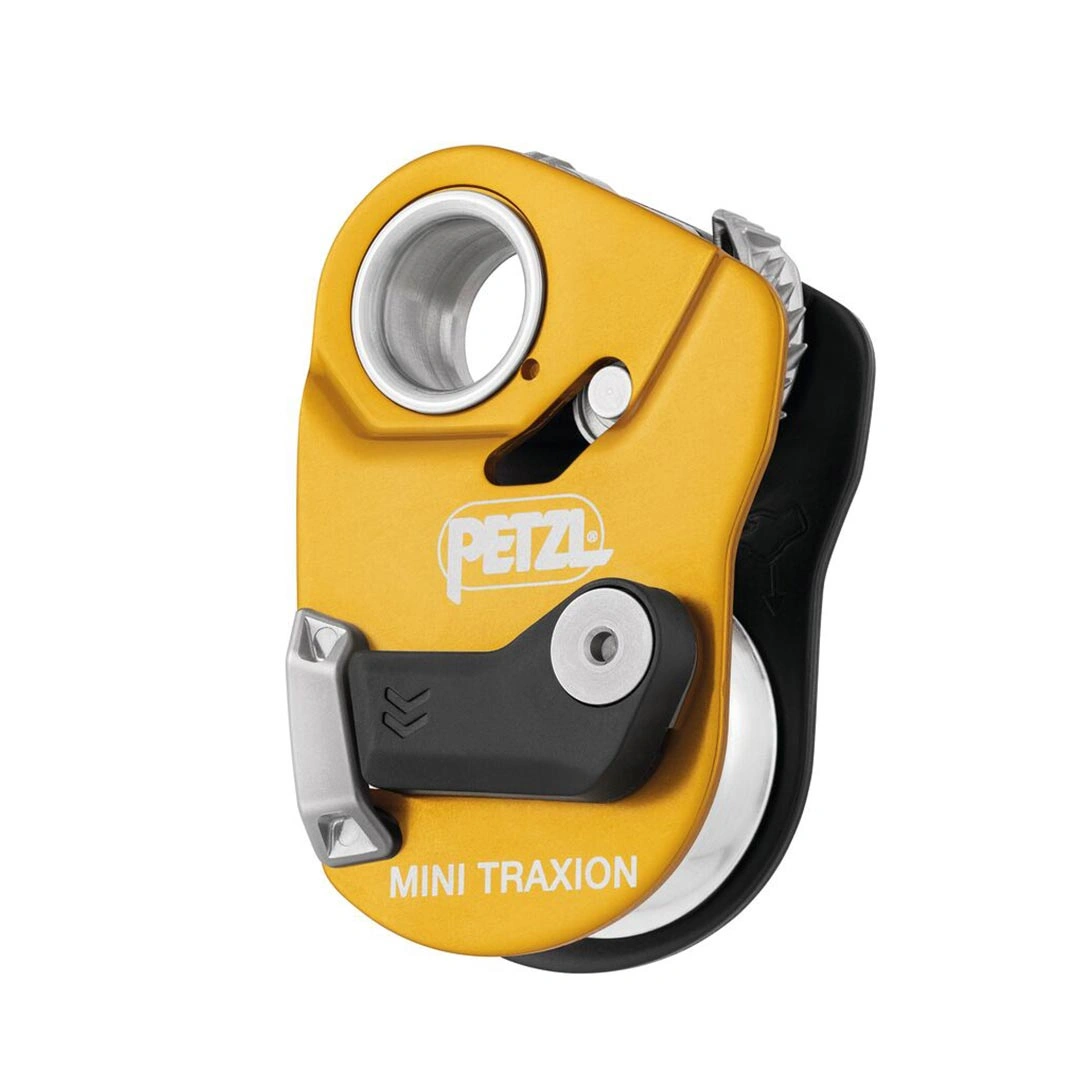

Possible to open, even when attached to the anchor, the MINI TRAXION progress-capture pulley is designed for setting up haul systems. With a medium-diameter sheave and great efficiency, it is particularly suitable for hauling mid-weight loads. Compact, reducing weight and bulk, which is especially useful during technical rescue and rope access work.

Features

• Drop-resistant and easy to operate:

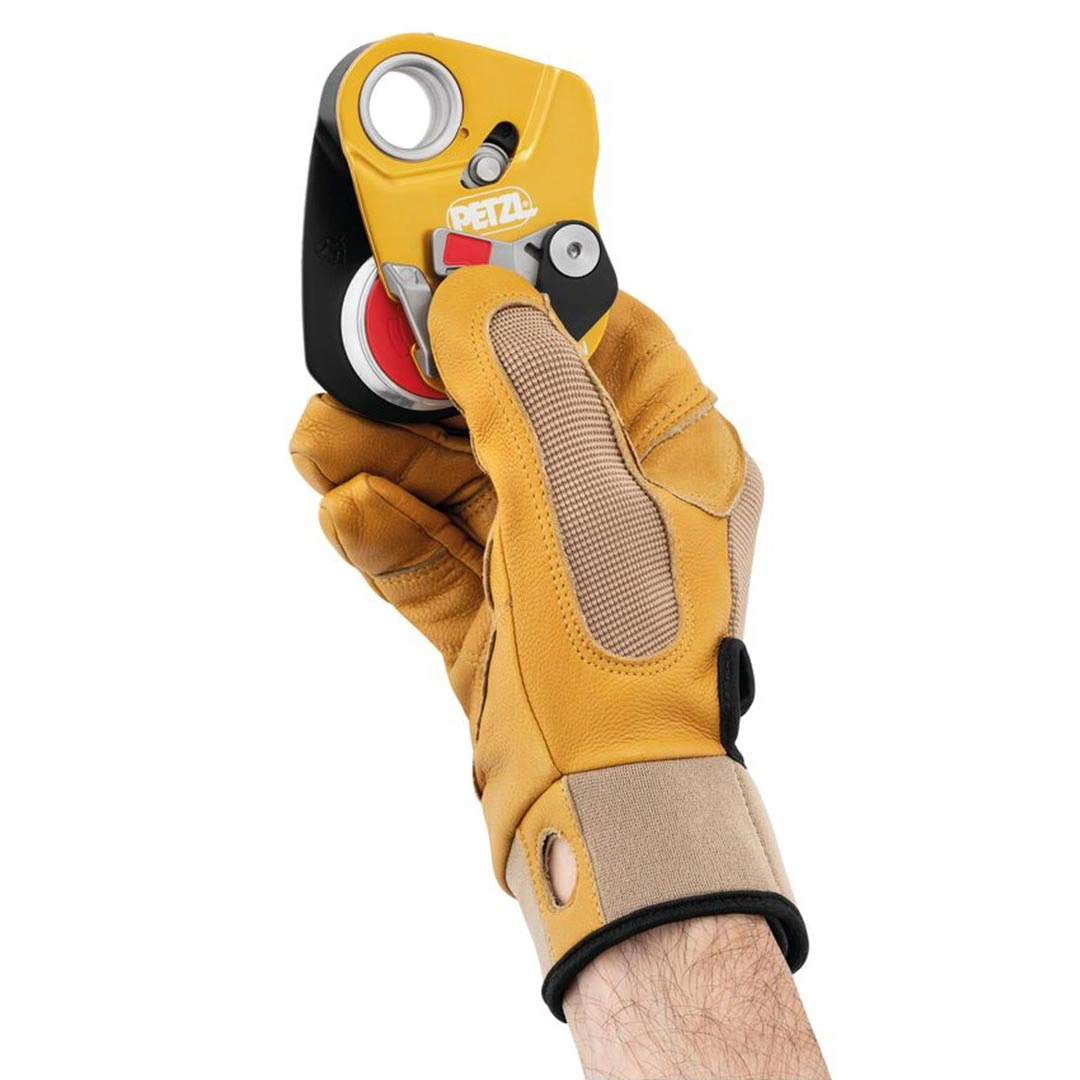

  - Triple-action opening of the moving side plate is quick and easy, even with gloves

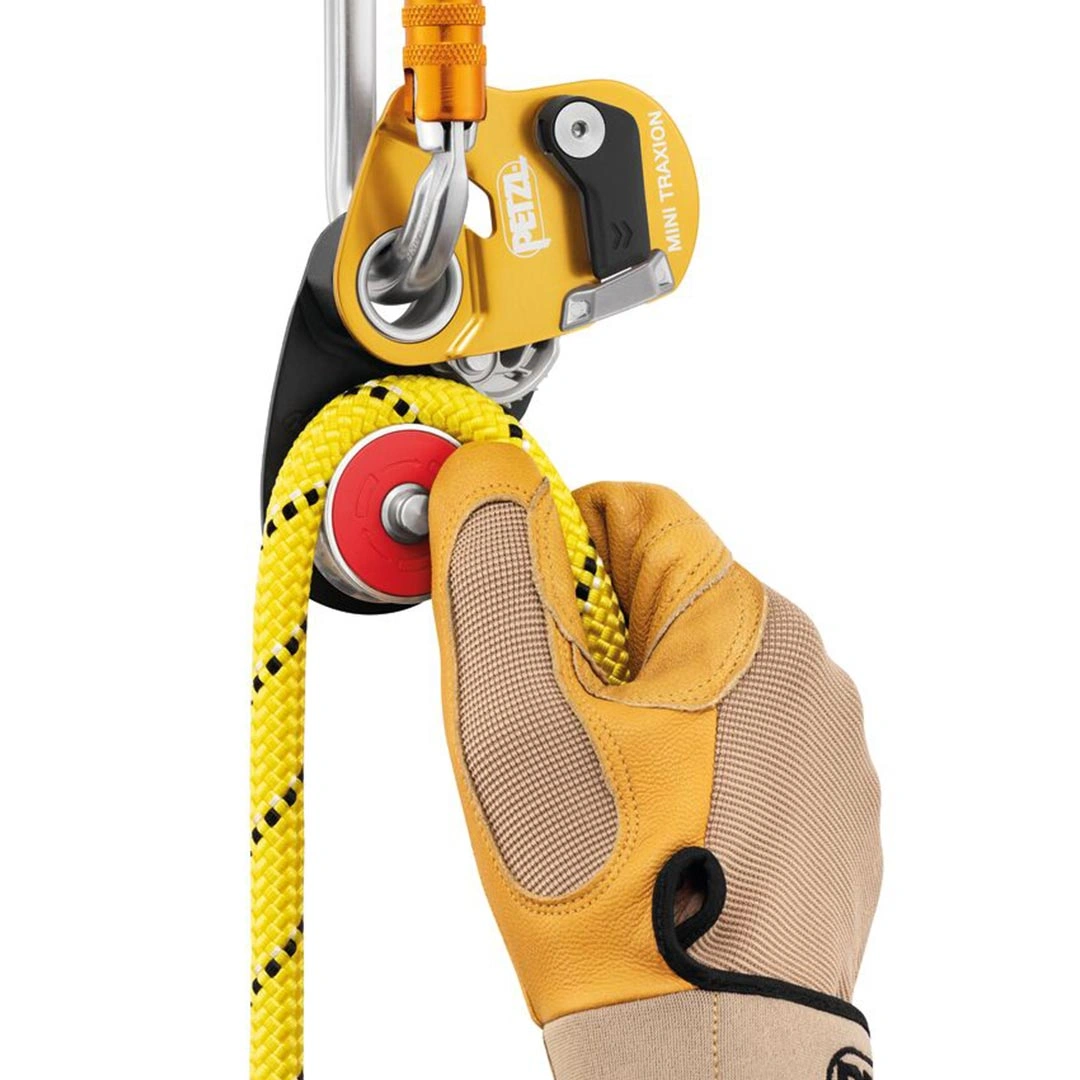

  - Rope can be installed when the pulley is connected to the anchor

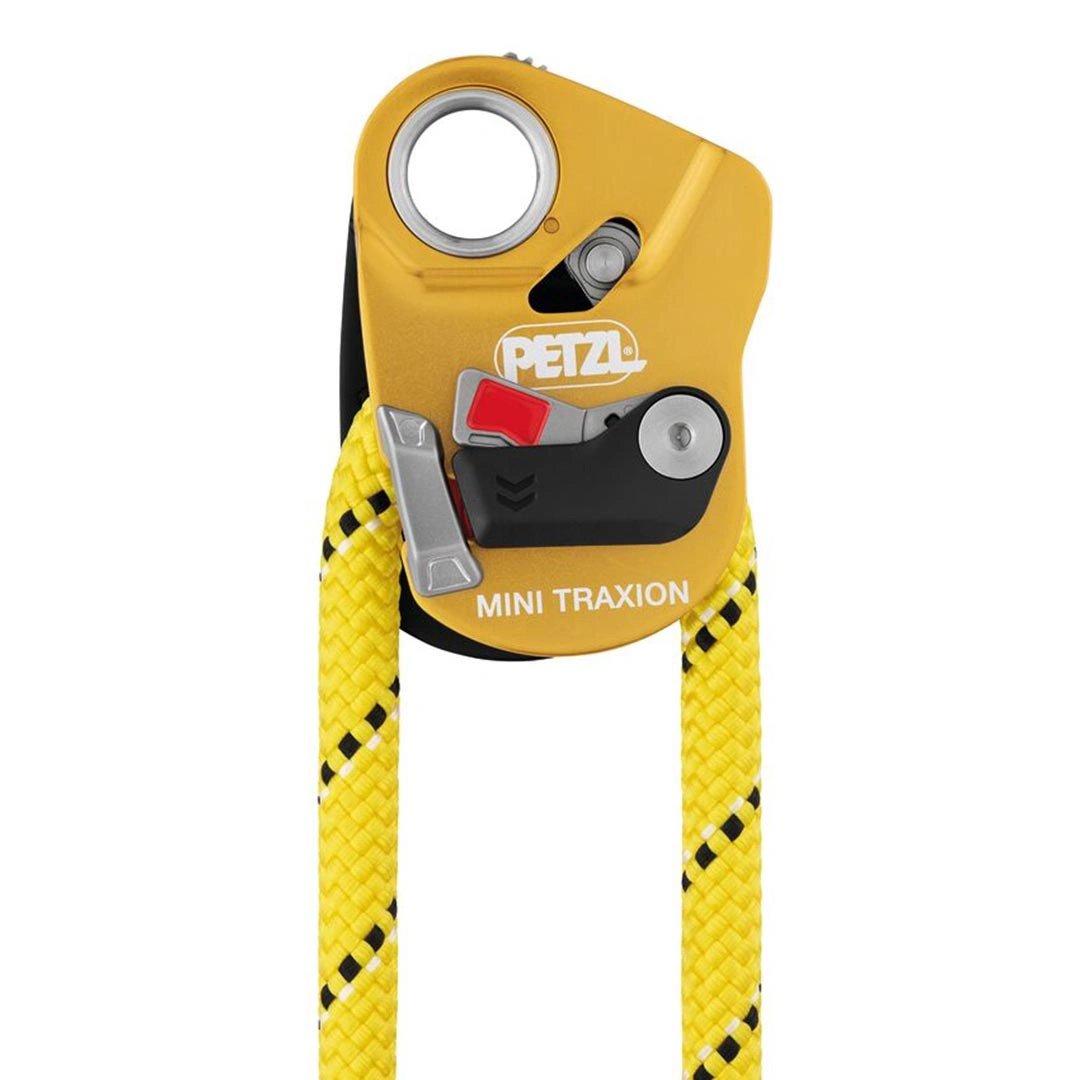

  - Red indicator provides a visual warning when the moving side plate is unlocked

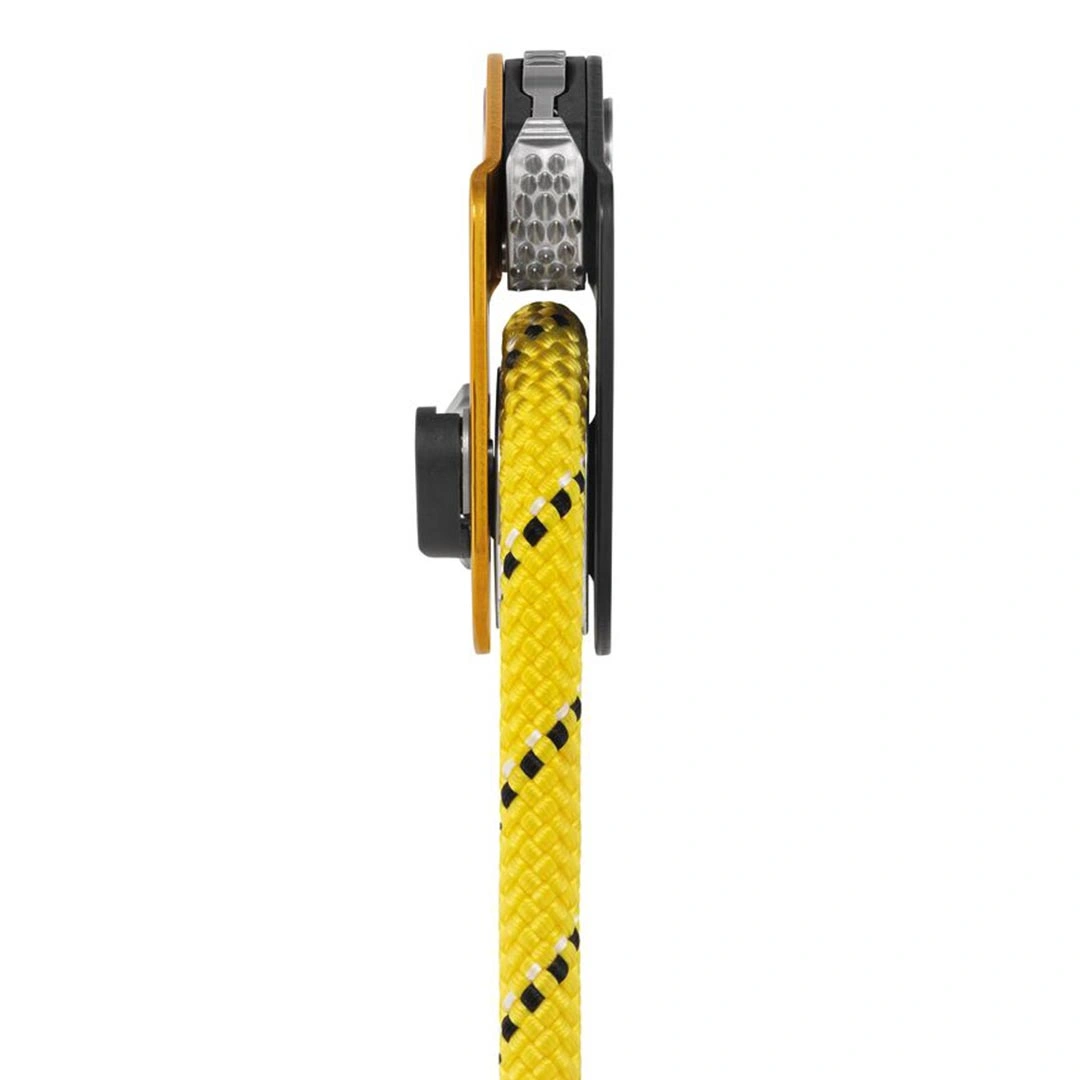

  - Special side plate design protects the rope path

• Designed for hauling mid-weight loads:
  - Mid-size diameter aluminum sheave mounted on sealed ball bearings for great efficiency

• Versatile:
  - Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty
  - May be used as a simple pulley by locking the cam in the raised position
  - Hole in the cam for installation of a remote control cord

Specifications

• Weight: 150 g
• Certification(s): CE EN 567, CE EN 12278, CE EN 12841 type B, UKCA, NFPA 2500 Technical Use Pulley and Rope grab
• Material(s): Aluminum, stainless steel, nylon
• Min. rope diameter: 7 mm
• Max. rope diameter: 11 mm
• Sheave type: Sealed ball bearings
• Sheave diameter: 32 mm
• Breaking strength - pulley: 10 kN x 2 = 20 kN
• Breaking strength - rope clamp: 4 kN
• Efficiency: 93 %
